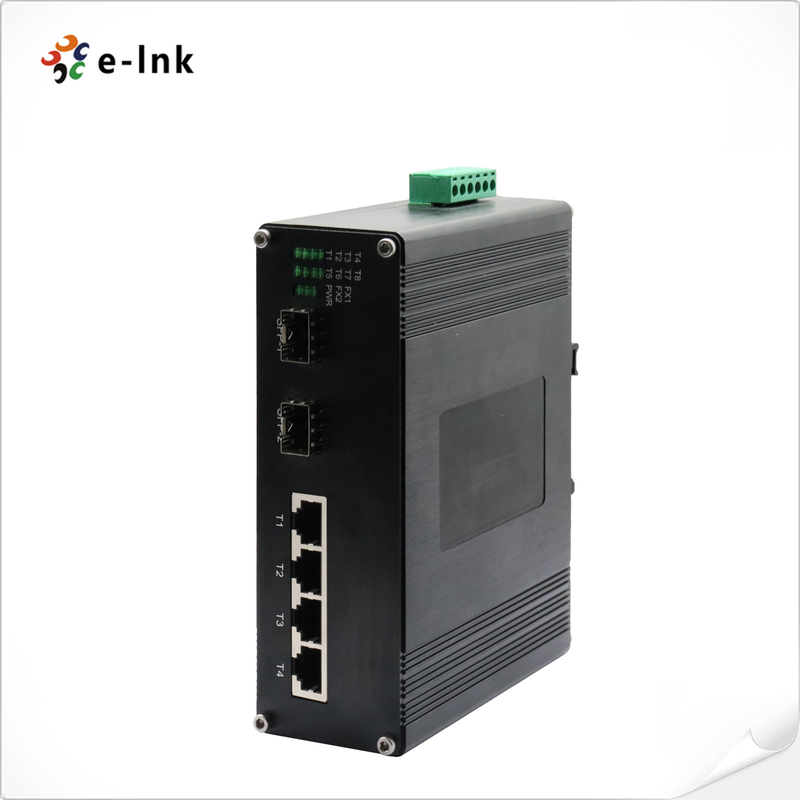

Industriële 4-poort 10/100TX 802.3at PoE + 2-poort 100FX Ethernet Switch

Productgegevens

Place of Origin: China

Merknaam: E-link

Certificering: CE, RoHS, FCC

Modelnummer: LNK-IMC204P

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1pcs

Prijs: $29.9-389

Packaging Details: PoE Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Levering vermogen: 1000 stuks per maand

Vind de beste prijs
Contact opnemen
Specificaties
Markeren:

Industriële 4-poort PoE-switch

,

10/100TX PoE-switch

,

2-poort 100FX PoE-switch

Sleutelwoord:
Industriële PoE Schakelaar
Verbinding:
4 x RJ45
Optische Haven:
2 x 100Base-FX (SFP, SC, FC, ST optioneel)
Werktemperatuur:
-40 °C tot 80 °C
Invoervermogen:
48~57VDC
Afmetingen:
150 x 115 x 50 mm
Sleutelwoord:
Industriële PoE Schakelaar
Verbinding:
4 x RJ45
Optische Haven:
2 x 100Base-FX (SFP, SC, FC, ST optioneel)
Werktemperatuur:
-40 °C tot 80 °C
Invoervermogen:
48~57VDC
Afmetingen:
150 x 115 x 50 mm
Beschrijving
Industriële 4-poort 10/100TX 802.3at PoE + 2-poort 100FX Ethernet Switch

IndustrieelPoEVoordelen van de Ethernet-switch

4 10/100Base-TX + 2 100Base-FX

10/100Mbps RJ45-poort ondersteunt Full/Half-duplex, automatische onderhandeling, automatische MDI/MDIX

¢ Ondersteunt opslag- en doorstuurtransmissie

Ondersteunt IEEE 802.3at PoE+ (30W per poort)

SFP, SC, FC, ST Facultatief

Technische indexen

PoE:
Port: RJ45 poort 1 ~ poort 4
Max. vermogen per poort: 30 W max per poort (alternatieve B-modus)
Bescherming:
Stroominvoer overbelasting: Automatisch opnieuw instellen
Omgekeerde polariteit: Huidig
Gewicht: 0.6kg
Hoesje: Aluminium behuizing
Montageopties: DIN-Rail / wandmontage

Overzicht

LNK-IMC204P is een 4 poorten 10/100Base-TX + 2 poorten 100Base-FX Harded PoE-switch.

De 1000Base-FX ondersteunt 1 of 2 kern Single-mode of Multi-mode vezels. Industriële 4-poort 10/100TX 802.3at PoE + 2-poort 100FX Ethernet Switch

Informatie over bestellingen

Model Beschrijving
LNK-IMC204P Industrial Ethernet Switch: 4-poort 10/100Base-TX ((4-poort PoE+) + 2-poort 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC204P-20 Industriële Ethernet-switch: 4-poort 10/100Base-TX ((4-poort PoE+) + 2-poort 100BASE-FX-vezel, single mode, dual fiber, SC, 20KM
LNK-IMC204PS-20 Industrial Ethernet Switch: 4-poort 10/100Base-TX ((4-poort PoE+) + 2-poort 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204PF-20 Industrial Ethernet Switch: 4-poort 10/100Base-TX ((4-poort PoE+) + 2-poort 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204P-SFP Industriële 4-poort 10/100BASE-T (4-poort PoE+) + 2-poort 100BASE SFP Ethernet Switch
SFP-opties Selecteer uw SFP op onze SFP-opties
De SFP-module moet apart worden aangeschaft.
Montageopties ️ De standaard DIN-Rail-beugel is geïnstalleerd; de wandbeugel is inbegrepen.
Stroomopties  120W/2.5A 48VDC DIN-Rail stroomvoorziening.
 De stroomvoorziening dient apart te worden aangeschaft.
