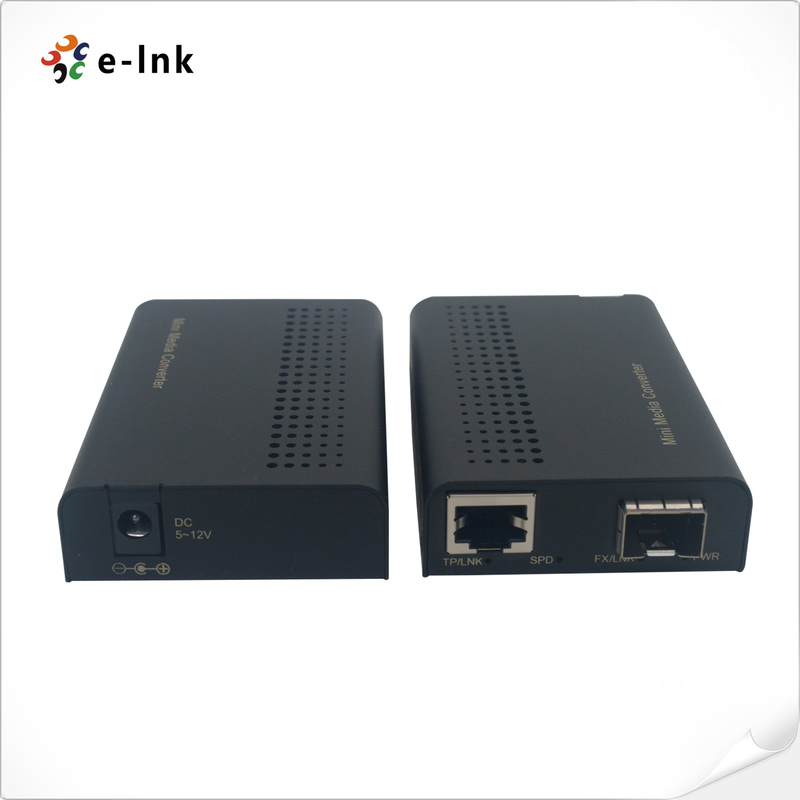

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter

Name: Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-MN-1000MC-SFP
Price: 64.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: CHINA

Merknaam: E-link

Certificering: CE, FCC, RoHS

Modelnummer: LNK-MN-1000MC-SFP

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stks

Prijs: Negotiated

Verpakking Details: Standaard exportpakket

Levertijd: 5-12 werkdagen

Betalingscondities: T/T, PayPal

Levering vermogen: 1000 stcs/mond

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Afmetingen:	58mm (W)×20mm (H)×90 mm (l)	Toegangsmodus:	10/100/1000Mbps
Golflengte:	850 nm/1310nm/1550 nm	Invoerspanning:	GELIJKSTROOM 5V~12V
Energieverbruik:	<3W	Bedrijfstemperatuur:	0 tot 50oC

Afmetingen:	58mm (W)×20mm (H)×90 mm (l)
Toegangsmodus:	10/100/1000Mbps
Golflengte:	850 nm/1310nm/1550 nm
Invoerspanning:	GELIJKSTROOM 5V~12V
Energieverbruik:	<3W
Bedrijfstemperatuur:	0 tot 50oC

Beschrijving

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter Advantage

► 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter

► Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards

► SFP Port

► DIP switch to set different configuration

► LFP (Link Fault Pass-through) support

► Support jumbo frame

► Compact package size

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter Overview

The mini 10/100/1000Base-TX to 1000Base-FX SFP media converter is fully compliant with IEEE802.3U,

IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control

for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the

different operating mode (Force FX to 100M, pass through mode, etc).

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps
Standard	IEEE802.3, IEEE802.3u,IEEE802.3Z,IEEE802.3x
Standard	1000Base-FX
Wavelength	850nm/1310nm/1550nm
Transmission distance	Multi-mode: 62.5/125μm fiber: 220m; 50/125μm fiber: 550m
	single mode: 20/40/60/80/100 km;
	Cat-5 twisted pairs: 100m
Conversion means	Store and Forward mode or Cut-Through mode
Flow control	Full duplex: flow control;
Flow control	Half duplex: back pressure
Input voltage	DC 5V~12V
Power consume	<3W
Operating temperature	0~50ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	58 (W) x 20 (H) x 90 (L) (mm)

Mini 10/100/1000Base-TX to 1000Base-SFP Media Converter Ordering Information

Item	Description

LNK-MN-1000MC-SFP	Mini 10/100/1000Base-TX to 1000BASE SFP Media Converter, excl. SFP modules, standalone, external power adaptor
