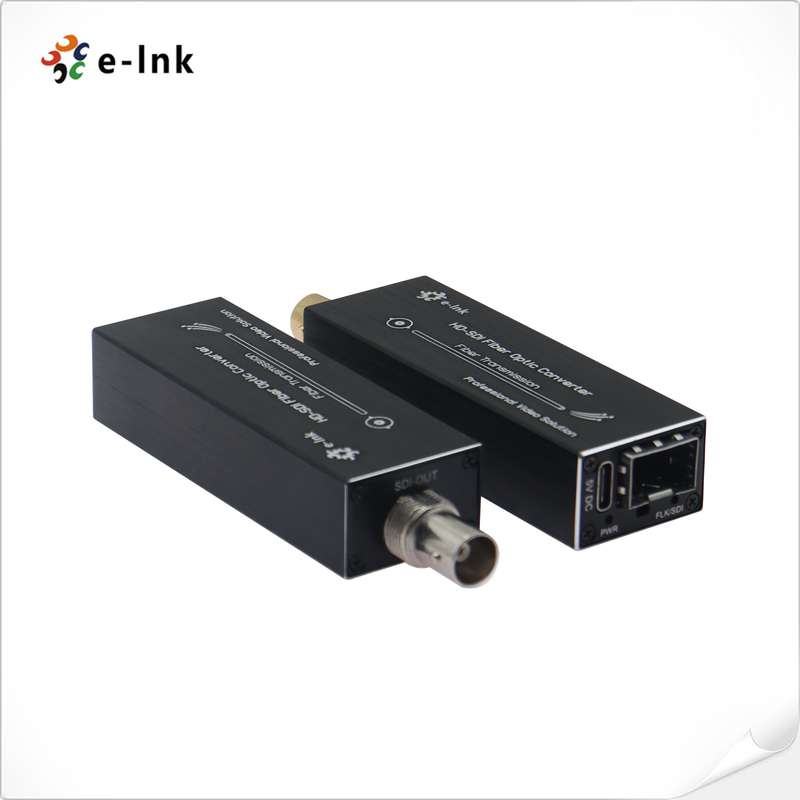

Mini HD-SDI over Fiber Extender

Name: Mini HD-SDI over Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHD-serie
Price: 594.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Modelnummer: LNK-MHD-serie

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 pc's

Prijs: Onderhandelbaar

Verpakking Details: Kartonverpakking

Levertijd: 3-12 werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 1000 pc's/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Afmetingen (LXWXH):	79 x 27 x 18 mm	Gewicht:	0,5 kg/paar
Behuizing:	Aluminium geval	Montageopties:	Bureaublad
Bedrijfstemperatuur (℃):	-20 ℃～+70 ℃	opslagtemperatuur:	-40 ℃～+80 ℃

Afmetingen (LXWXH):	79 x 27 x 18 mm
Gewicht:	0,5 kg/paar
Behuizing:	Aluminium geval
Montageopties:	Bureaublad
Bedrijfstemperatuur (℃):	-20 ℃～+70 ℃
opslagtemperatuur:	-40 ℃～+80 ℃

Beschrijving

Mini HD-SDI over Fiber Extender

Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Overview

LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
Video SDI standard	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	79 x 27 x 18 mm
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Operating humidity	5%~90% non-condensing
Storage humidity	5% ~ 90% non-condensing
MTBF	≥100000 hours

Ordering Information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Application

Mini HD-SDI over Fiber Extender 0
