VGA Fiber Optic Extender

Name: VGA Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-FVGA
Price: 134.00 USD
Availability: InStock

Productgegevens

Place of Origin: China

Merknaam: E-link

Certificering: ROHS,FCC,CE

Model Number: LNK-FVGA

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1 pcs

Prijs: Onderhandelbaar

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Keywords:	Fiber Optic Extender	Dimensions (WxDxH):	15511530mm
Operating Temperature:	-5℃ ~ +70℃	Power supply:	The power adapter: DC 5V/2A
Power dissipation:	MAX 6W	The warranty:	1 year free warranty, life-long maintenance

Keywords:	Fiber Optic Extender
Dimensions (WxDxH):	15511530mm
Operating Temperature:	-5℃ ~ +70℃
Power supply:	The power adapter: DC 5V/2A
Power dissipation:	MAX 6W
The warranty:	1 year free warranty, life-long maintenance

Beschrijving

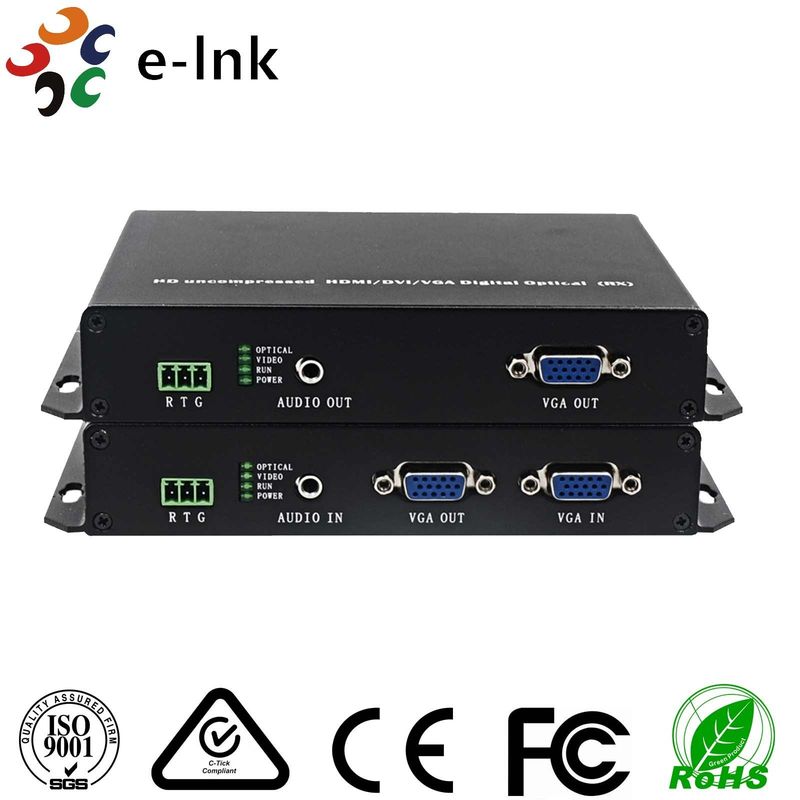

VGA Fiber Optic Extender

VGA Fiber Optic Extender Advantages

► Transmits VGA video signals up to 10km over one fiber optic cable;

► Support video resolution up to 1920*1080P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio unidirectional transmission;

► Support transmitter one channel signal output;

► Support RS232 signal unidirectional transmission, baud rate self-adaptive;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

VGA Fiber Optic Extender Overview

The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances transmission over one fiber optic cable, it supports high resolution up to 1080P, KVM, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications that requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

VGA Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	VGA
	Maximum pixel clock	380MHz
	Resolution	1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz
	Impedance	75Ω
Audio	Interface	3.5mm earphone seat
	Format	44.1K,48K,96K,176K,192K
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	2.97Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	15511530mm
	The warranty	1 year free warranty, life-long maintenance

VGA Fiber Optic Extender Ordering information

Model	Details
LNK-FVGA-T	1080P VGA Fiber Optic Extender Transmitter
LNK-FVGA-R	1080P VGA Fiber Optic Extender Receiver
