Rack Mount PLC Splitter

Productgegevens

Place of Origin: China

Merknaam: E-link

Document: E-link Rack Mount PLC Split....0.pdf

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1 pcs

Prijs: Onderhandelbaar

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Operating Wavelength (nm):	1260～1650	Min Return Loss (dB):	55
Min Directivity (dB):	55	Operating Temperature (℃):	-40～85
Storage Temperature (℃):	-40～85	Max Temperature Stability (dB):	0.5

Operating Wavelength (nm):	1260～1650
Min Return Loss (dB):	55
Min Directivity (dB):	55
Operating Temperature (℃):	-40～85
Storage Temperature (℃):	-40～85
Max Temperature Stability (dB):	0.5

Beschrijving

Rack Mount PLC Splitter

Rack Mount PLC Splitter

Advantages

ü Low Insertion Loss (IL)

ü High isolation

ü Low Polarization Dependent Loss (PDL)

ü Compact design with adapters

ü Wide operating wavelength range

ü Good channel-to-channel uniformity

ü High reliability and high stability

ü Telcordia GR-1209-CORE-2001 compliant

ü Telcordia GR-1221-CORE-1999 compliant

ü YD/T-1272Q compliant

ü Q/CT-2295 compliant

ü RoHS-6 compliant (lead free)

Overview

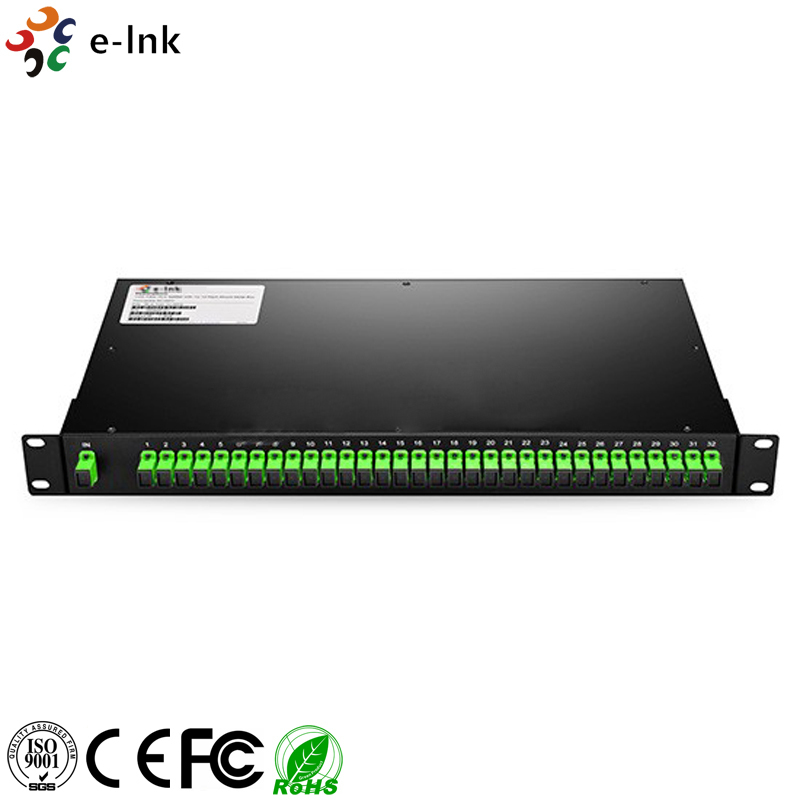

The E-link rack mount PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with 19-inch 1U rack mount package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized rack mount PLC splitters to meet different requirements on port configuration, input connector, and output connector.

Technical Indexes

Parameters	1×N Rack Mount PLC Splitters
Operating Wavelength (nm)	1260～1650
Port Configuration	1×2	1×4	1×8	1×16	1×32	1×64
Max Insertion Loss (dB) (P/S Grade)	4.1/4.3	7.4/7.6	10.5/10.8	13.8/14.0	16.8/17.2	20.8/21.3
Max Loss Uniformity (dB)	0.6	0.7	0.8	1.2	1.5	2.0
Max PDL (dB)	0.2			0.25		0.35
Min Return Loss (dB)	55
Min Directivity (dB)	55
Max Wavelength Dependent Loss (dB)	0.5			0.8		1.0
Max Temperature Stability (dB)	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Device Dimension L×W×H (mm)	483×150×45

Parameters	2×N Rack Mount PLC Splitters
Operating Wavelength (nm)	1260～1650
Port Configuration	2×2	2×4	2×8	2×16	2×32	2×64
Max Insertion Loss (dB)	4.5	7.9	11.3	14.7	17.8	21.3
Max Loss Uniformity (dB)	0.9	1.0	1.2	1.5	1.8	2.2
Max PDL (dB)	0.3				0.35	0.4
Min Return Loss (dB)	55
Min Directivity (dB)	55
Max Wavelength Dependent Loss (dB)	0.5			0.8		1.0
Max Temperature Stability (dB)	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Device Dimension L×W×H (mm)	483×150×45

Ordering Information

LNK-xxx-19	-	x	x
Rack Mount PLC Splitter		Input Connector	Output Connector
xxx:		0=None	0=None
102=1×2		1=FC/UPC	1=FC/UPC
...		2=FC/APC	2=FC/APC
164=1×64		3=SC/UPC	3=SC/UPC
202=2×2		4=SC/APC	4=SC/APC
...		5=LC/UPC	5=LC/UPC
264=2×64		6=LC/APC	6=LC/APC
