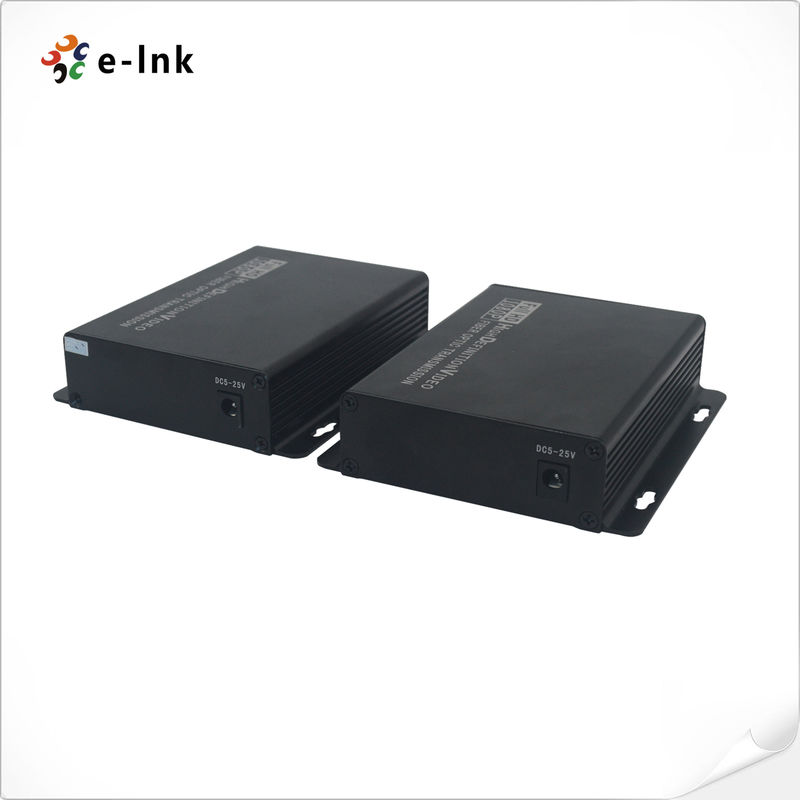

3G/HD-SDI to Fiber Converter

Name: 3G/HD-SDI to Fiber Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-HD-110 & LNK-3G-110
Price: 594.00 USD
Availability: InStock

Productgegevens

Place of Origin: China

Merknaam: E-link

Certificering: ROHS,FCC,CE

Model Number: LNK-HD-110 & LNK-3G-110

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1 pcs

Prijs: Onderhandelbaar

Packaging Details: Fiber Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Keywords:	Fiber Converter	Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	120 x 105 x 28 mm	Consumption:	<5W
MTBF:	≥100000 hours	Weight:	0.43KG/pair

Keywords:	Fiber Converter
Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	120 x 105 x 28 mm
Consumption:	<5W
MTBF:	≥100000 hours
Weight:	0.43KG/pair

Beschrijving

3G/HD-SDI to Fiber Converter

3G/HD-SDI to Fiber Converter Advantages

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic re locking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

► 1000M optical fiber transmission, easy for update;

industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

3G/HD-SDI to Fiber Converter Overview

LNK-HD-110 & LNK-3G-110 Series 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & reversed RS422/485 data signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

3G/HD-SDI to Fiber Converter Technical Indexes

Fiber Optical interface
Fiber interface	Simplex FC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/out put voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video SDI standard	270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface	Industrial standard screw terminal
Data type	RS422/RS485 Reverse Direction
Frequency/Rate support	Max. 115200bps for RS422 Max. 57600bps for RS485
BER	<10ˉ⁹
Electrical
Power adaptor	DC 5~25V
Power consumption	<5W
LED Indicator
P/S	Power Supply
DAT	Data
Mechanical
Dimensions (LxWxH)	120 x 105 x 28 mm
Weight	0.43KG/pair
Casing	Aluminum Case
Mounting Options	Wall-mount
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

3G/HD-SDI to Fiber Converter Ordering Information

Model	Description
LNK-HD-110-20	HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-3G-110-20	3G-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

3G/HD-SDI to Fiber Converter 0
