Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Name: Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE-2P
Price: 57.00 USD
Availability: InStock

Productgegevens

Place of Origin: China

Merknaam: E-link

Certificering: CE, FCC, IP67

Model Number: LNK-POE-2P

Document: E-link LNK-POE2P 100M Passi....0.pdf

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1pcs

Prijs: Onderhandelbaar

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      Passive PoE Injector, Passive PoE Splitter, Passive PoE injector kit


Weight:	0.25Kg	Dimensions (WxDxH)::	95 x 70 x 30 mm
Operating Temperature::	-40°C to 80°C (-40°F to 176°F)	Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount	Power Consumption::	36W Max.

Weight:	0.25Kg
Dimensions (WxDxH)::	95 x 70 x 30 mm
Operating Temperature::	-40°C to 80°C (-40°F to 176°F)
Case:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Power Consumption::	36W Max.

Beschrijving

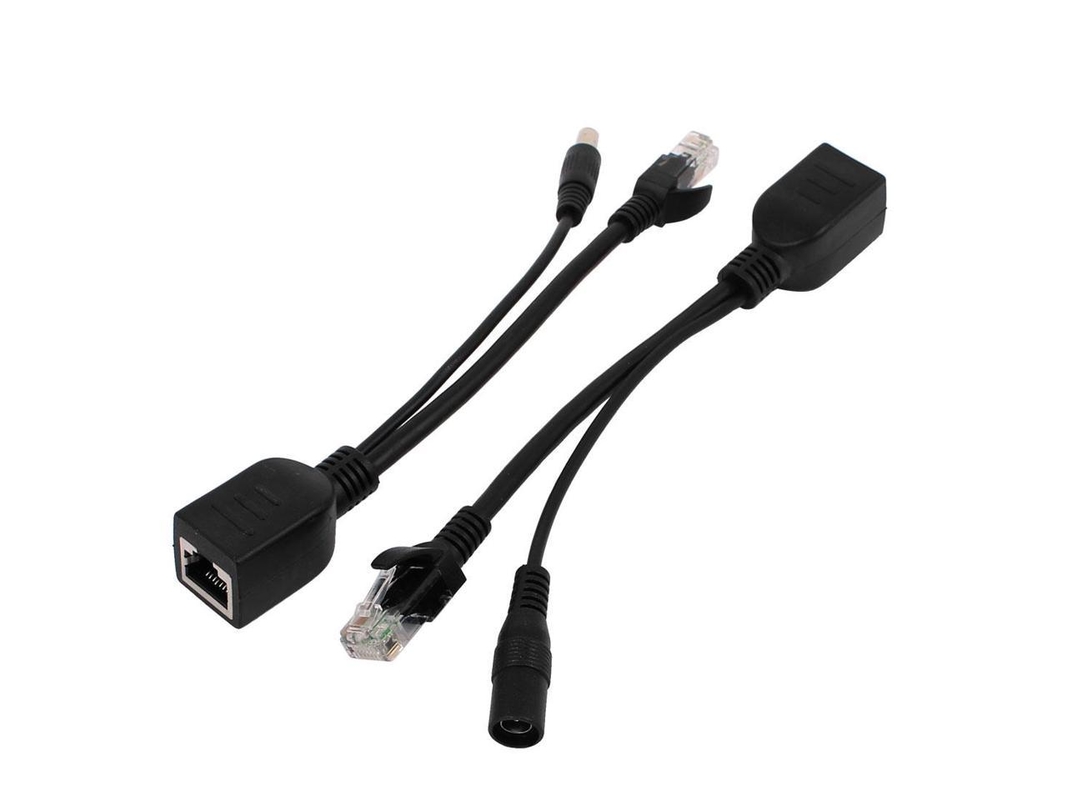

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Product Advantages

Passive PoE Splitter + Passive PoE Injector
Easy to install PoE Application for AP, CPE, IPCam, IP Phone
Use the Power Supply from Powered Device
Accept up to 57V Voltage Input

Overview

LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive injector. It provides the most convenient and cost effective way for you to make PoE application, you do not worry about how to find power outlet when using AP or IPCam. It uses the power adapter that comes with your network device. There is no need for special PoE power adapter.

Technical Indexes

Interface	Data pin: 1,2,3,6 Power pin: 4, 5, 7, 8 (12~57V)
Case of material	PVC
Network cable	T IA/EIA 568 Cat. 5
Ethernet data rate	10/100 Mbps
Ethernet cable connector	RJ-45
Operating Temperature	0°C - 40°C (32°F - 104°F)
Storage temperature	-40°C - 70°C (-40°F - 158°F)
Operating Humidity	10% ~ 80% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)
Product Weight (g)	55g
Dimensions (L x W x H (mm))	210 x 19 x 19 mm

Ordering Information

Item	Description
LNK-POE-2P	Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector
