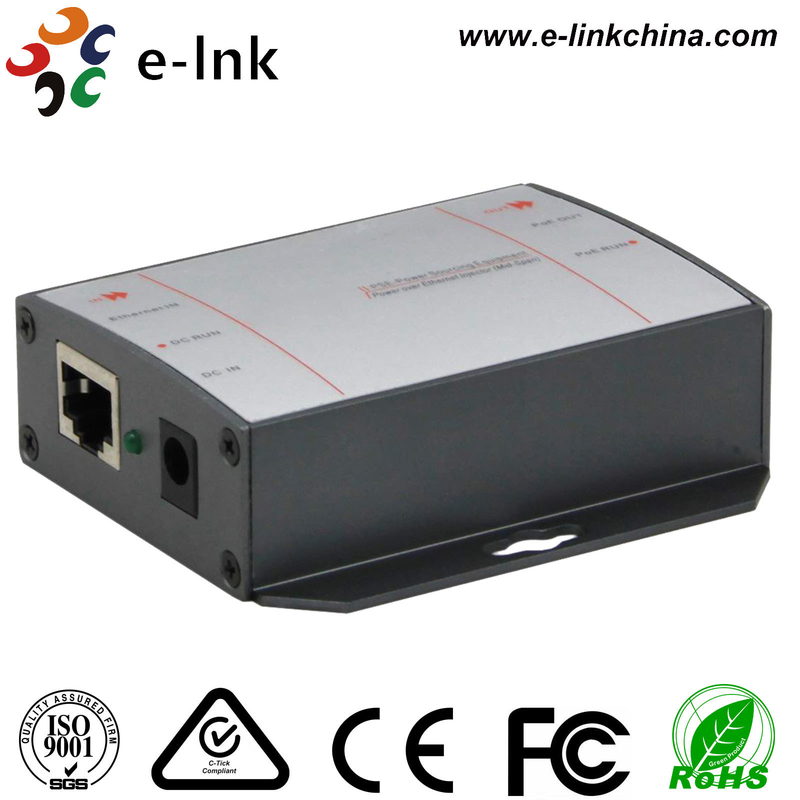

Single Port PoE Injector with DC Input 12~36V

Name: Single Port PoE Injector with DC Input 12~36V
Brand: E-link China Technology Co.,LTD
SKU: Lnk-PSE832
Price: 57.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: CHINA

Merknaam: E-link

Certificering: CE, RoHS, FCC, ISO9001

Modelnummer: Lnk-PSE832

Document: E-link LNK-PSE832 Series 12....0.pdf

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stks

Prijs: Onderhandelbaar

Verpakking Details: Industriële PoE Schakelaar Standaardkarton Verpakking

Levertijd: 7-10 werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 100000 stuks/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                  Single Port PoE Injector, DC Input PoE Injector


Garantie:	CE-markering, commercieel, FCC Deel 15 Klasse B, RoHS 1 jaar garantie	Bedrijfstemperatuur::	0°～ 55°C
Gewicht:	0.11kg	Werkvochtigheid:	10%~90%, niet-condenserend
Afmetingen (W × D × H)::	80x76x25(mm)

Garantie:	CE-markering, commercieel, FCC Deel 15 Klasse B, RoHS 1 jaar garantie
Bedrijfstemperatuur::	0°～ 55°C
Gewicht:	0.11kg
Werkvochtigheid:	10%~90%, niet-condenserend
Afmetingen (W × D × H)::	80x76x25(mm)

Beschrijving

Single Port PoE Injector with DC Input 12~36V

Product Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 2x RJ45 ports (10/100M or 10/100/1000M); 1x DC input port

► DC input:12V~36V

► Compatible with IEEE 802.3af standard

► Coming with the Ethernet network port and PoE output

► port, and the power input port with lighting-proof function

► Can supply power with the spare line pair(4/5 (+), 7/8 (-)

► method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design,suitable for desktop or wall

Overview

PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output.

Technical Indexes

Port Description	2x copper cable RJ45 ports, 1x DC input port
PoE Power Supply	mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized)
Network Medium	100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters)
Thermal Protection	>100°C
Performance	Working Rate:10/100Mbps or 10/100/1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 190,000 hours(about 21 years)
PoE Standards	IEEE802.3af IEEE802.3at
LEDs Indicator	PoE working status
Power	Total power: 16W(IEEE802.3af) 30W(IEEE802.3at) PoE port power: 15.4W(IEEE802.3af) 25.5W(IEEE802.3at) DC input voltage: 12~36V
Dimensions/Weight	LxWxH: 80x76x25(mm), 0.11kg
Working Environment	Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing
Warranty	CE mark, commercial, FCC Part 15 Class B, RoHS 1 year warranty

Ordering Information

Model	Description
LNK-PSE832	DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W
LNK-PSE832T	DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W
LNK-PSE832G	DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af,15.4W
LNK-PSE832GT	DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at,25.5W
