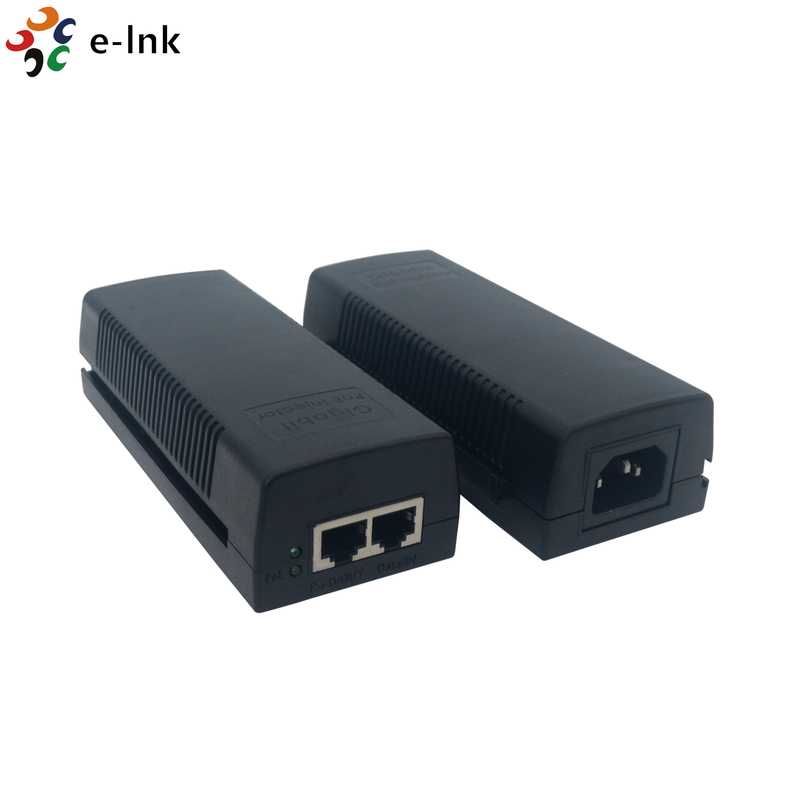

LNK-POE200 Series & LNK-POE300 Series POE Adapter/Injector

Name: LNK-POE200 Series & LNK-POE300 Series POE Adapter/Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE200
Price: 57.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: CHINA

Merknaam: E-link

Certificering: CE, RoHS, FCC, ISO9001

Modelnummer: LNK-POE200

Document: E-link PoE Adapter (Injecto....0.pdf

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuk

Prijs: Onderhandelbaar

Verpakking Details: Industriële PoE Schakelaar Standaardkarton Verpakking

Levertijd: 7-10 werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 100000 stuks/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      LNK-POE300 POE Injector Adapter, LNK-POE200 POE Injector Adapter


Bedrijfstemperatuur::	0 tot +40°C,	uitgangsvermogen:	15.4W Max IEEE802.3af, 30W Max IEEE802.3at
Vochtigheid:	Max. 95%-(non-condensing) relatieve vochtigheid	Dimensie:	61×40×12 (H×D×W)
LED-scherm:	Ja	Gewicht:	200g

Bedrijfstemperatuur::	0 tot +40°C,
uitgangsvermogen:	15.4W Max IEEE802.3af, 30W Max IEEE802.3at
Vochtigheid:	Max. 95%-(non-condensing) relatieve vochtigheid
Dimensie:	61×40×12 (H×D×W)
LED-scherm:	Ja
Gewicht:	200g

Beschrijving

LNK-POE200 Series & LNK-POE300 Series POE Adapter/Injector

Product Advantages

· Up to 15.4W/30W of PoE Power

· Fully IEEE802.3af/IEEE802.3at compliant

· Supports 10/100M or 10/100/1000M LAN environment

· Plug & Play

· No configuration required

· Reduced Installation cost

· Safe and Reliable Power to WLAN Access Points

· Automatic Detection and Protection of Non–standard Ethernet Terminals

Overview

The LNK-POE200/LNK-POE300 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.

Technical Indexes

Parameter	Specifications
Features	• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45
	• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX
	• Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	15.4W Max IEEE802.3af 30W Max IEEE802.3at
Wiring	• Data provide over pairs 1/2(+) and 3/6(-)
Wiring	• Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	61×40×12(H×D×W)
Weight	200g

Ordering Information

Model	Decription
LNK-POE200	PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE200AT	PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE300	PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE300AT	PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W

Application
