4K HDMI Fiber Optic Extender (EDID)

Name: 4K HDMI Fiber Optic Extender (EDID)
Brand: E-link China Technology Co.,LTD
SKU: LNK-H4K100 LNK-H4K100S-10
Price: 134.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: ROHS,FCC,CE

Modelnummer: LNK-H4K100 LNK-H4K100S-10

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 pc's

Prijs: Onderhandelbaar

Verpakking Details: Extender Standaard Exportpakket

Levertijd: 3-12 werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 1000 pc's/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      4K HDMI Fiber Optic Extender, EDID HDMI Fiber Optic Extender


Trefwoorden:	Optische glasvezelverlenger	Werktemperatuur:	-5 ℃ ~ +70 ℃
Stroomvoorziening:	De vermogensadapter: DC 5V/2A	Power Dissipation:	Max 4W
Afmeting (LxWxH):	1048928mm	Vochtigheid:	Het werken: 5% ~ 90%

Trefwoorden:	Optische glasvezelverlenger
Werktemperatuur:	-5 ℃ ~ +70 ℃
Stroomvoorziening:	De vermogensadapter: DC 5V/2A
Power Dissipation:	Max 4W
Afmeting (LxWxH):	1048928mm
Vochtigheid:	Het werken: 5% ~ 90%

Beschrijving

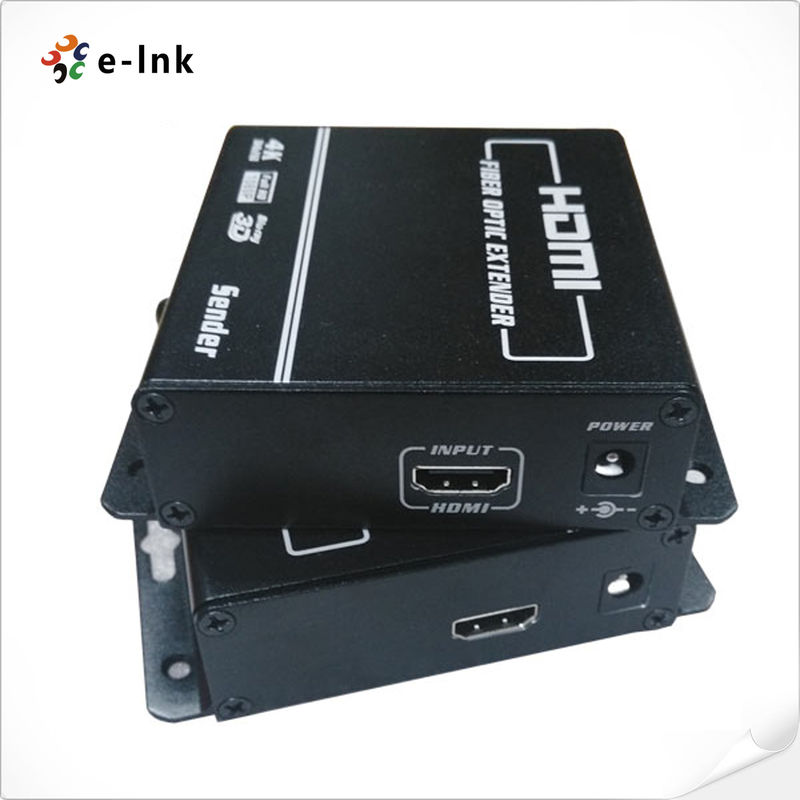

4K HDMI Fiber Optic Extender (EDID)

4K HDMI Fiber Optic Extender (EDID) Advantages

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4; High compatibility;

► Transmitter includes EDID memory to cache the EDID from any display;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

4K HDMI Fiber Optic Extender (EDID) Overview

The LNK-H4K100 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

4K HDMI Fiber Optic Extender (EDID) Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	340MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multi-mode / single-mode (optional)
	Wavelength	Multi-mode 850nm / Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	Max 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1048928mm

4K HDMI Fiber Optic Extender (EDID) Ordering Information

Item	Description
Item	Description
LNK-H4K100	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-10	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-40	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs
