Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender

Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender

Advantages

► Supports HDMI Video up to 4K/30Hz

► No Settings or Adjustments Necessary

► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber

► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber

► Standard HDMI1.4 Connector

► Integrated USB Connector for Power

► Low power consumption, only the RX module (Display side) needs external power supply

► Hot-Pluggable

► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance

► Uses Small, Reliable LC Optical Connector

Overview

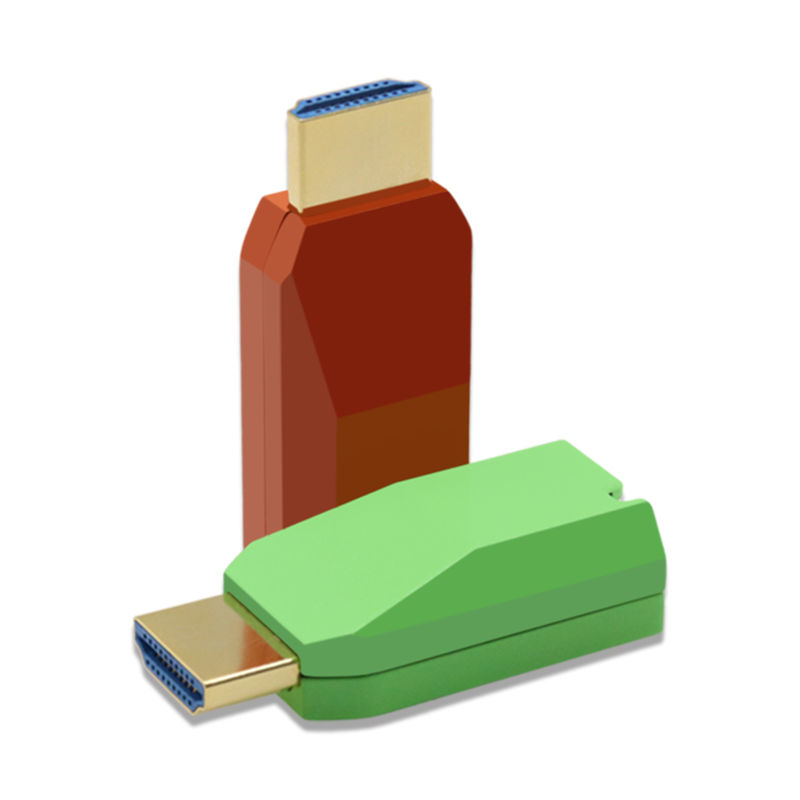

The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 500m (with OM5 fiber) to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.

The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4 signal over OM5 multimode optical fiber at 850nm, up to distances of 500m, at a resolution of 4Kx2K. LNK-108M-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over single optical fibers. LNK-108M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Technical Indexes

Order Information


Application
