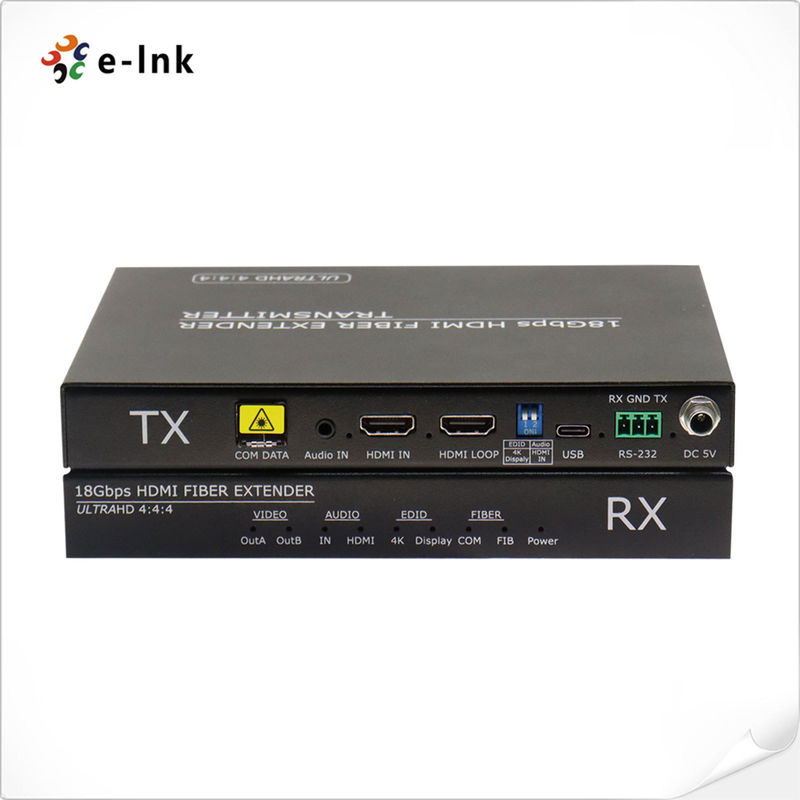

4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender

4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender

Advantages

► Supports synchronous audio and video extension output.

► Supports video bandwidth up to 18Gbps.

►  The transmitter features a loop-out interface (for sharing local signals) and external audio embedding capability.

► The receiver is equipped with a backup output interface and audio de-embedding output functionality.

► The receiver is equipped with a backup output interface and audio de-embedding output functionality.

► Transmission distance can reach up to 10 kilometers (using single-mode fiber).

► Supports video resolutions up to 4K2K@50/60Hz: 7680*2160 30Hz 4:4:4 transmission.

► Capable of custom non-standard resolution transmission, with a maximum width and height of 7680 pixels.

► HDMI audio formats supported: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.

► Strong compatibility, widely applicable to LED/LCD/projection and other display devices.

Overview

LNK-4KH-UC-1A1R.  HDMI signal input port used to connect to HDMI source devices such as PCs, Blu-ray DVD players, etc. HDMI video loop-out port, used to connect to HDMI display devices for sharing local high-definition audio and video signals, such as HDTV, projectors, etc.

This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Technical Indexes

Order Information


Application
