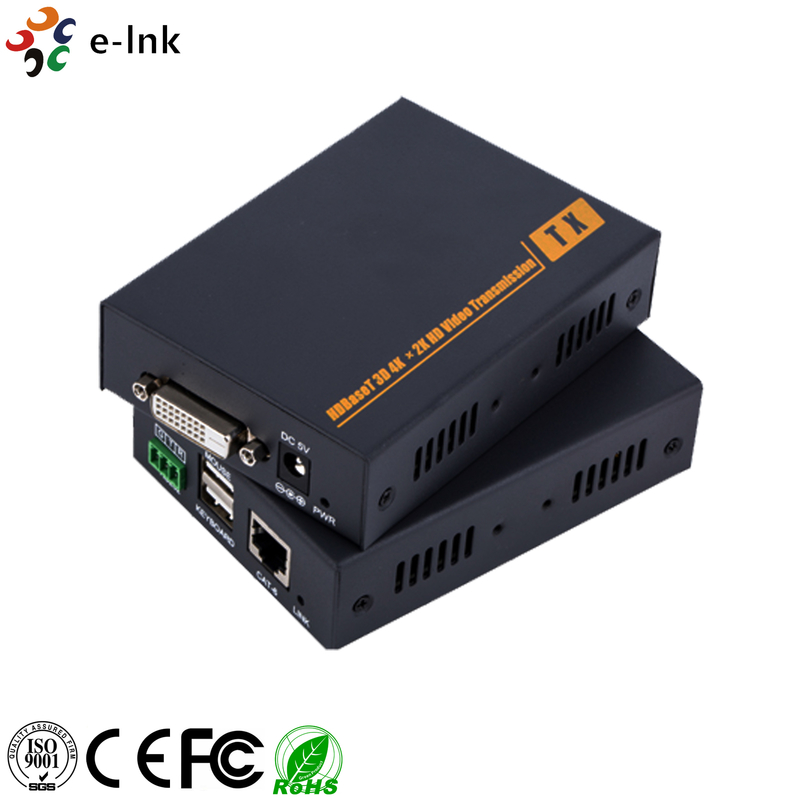

HD-BaseT DVI KVM Extender Over 100m Single Cat6/7 Cable

Name: HD-BaseT DVI KVM Extender Over 100m Single Cat6/7 Cable
Brand: E-link China Technology Co.,LTD
SKU: Lnk-dkm100-t
Price: 134.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: CE, RoHS, FCC, ISO9001

Modelnummer: Lnk-dkm100-t

Document: E-link 4K DVI KVM over Cat6....0.pdf

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: Onderhandelbaar

Verpakking Details: Industriële PoE Schakelaar Standaardkarton Verpakking

Levertijd: 7-10 werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, Paypal

Levering vermogen: 100000 stuks/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      100m DVI KVM  Extender, HD-BaseT DVI KVM Extender, Cat6/7 DVI KVM Extender


Bedrijfstemperatuur::	-5 ℃ ~ +70 ℃	Power dissipation:	MAX 6W
Stroomvoorziening:	GELIJKSTROOM 5V/2A	Oplossing:	1920X1080P@60Hz, 4K*2K
Bedieningsvochtigheid:	5% ~ 90%	Garantie:	2 jaar

Bedrijfstemperatuur::	-5 ℃ ~ +70 ℃
Power dissipation:	MAX 6W
Stroomvoorziening:	GELIJKSTROOM 5V/2A
Oplossing:	1920X1080P@60Hz, 4K*2K
Bedieningsvochtigheid:	5% ~ 90%
Garantie:	2 jaar

Beschrijving

HD-BaseT DVI KVM Extender Over 100m Single Cat6/7 Cable

Product Advantages

· Transmits DVI video signals up to 100m over a single CAT6 cable

· Support video resolution up to 1920*1080P@60Hz and 4K*2K

· Support HD BaseT technology

· Support KVM, keyboard and mouse signal transmission

· Support RS232 signal bi-directional transmission, baud rate self-adaptive

· Compliance with DVI 1.0 and HDCP 1.2 standard

· High compatibility, can auto-match source and display device

· Built-in automatic adjustment system, make the image smooth, clear and stable

· Built-in ESD protection system

· Simple to install, plug and play

Overview

The DVI KVM extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	10.2Gbps
	Resolution	1920X1080P@60Hz, 4K*2K
	Connector	DVI-D
	Impedance	100Ω
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max: 115200bps
	Data bits	8
KVM	Interface	PC: MINI-USB Keyboard and mouse: USB-A
Ethernet	Interface	RJ45
Ethernet	Transmission distance	1080P: CAT6---100m 4K*2K: CAT6---70m
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1057627mm
	Warranty	2-year

Odering Information

Item	Description

LNK-DKM100-T	DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Transmitter, 100 meters
LNK-DKM100-R	DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Receiver, 100 meters
