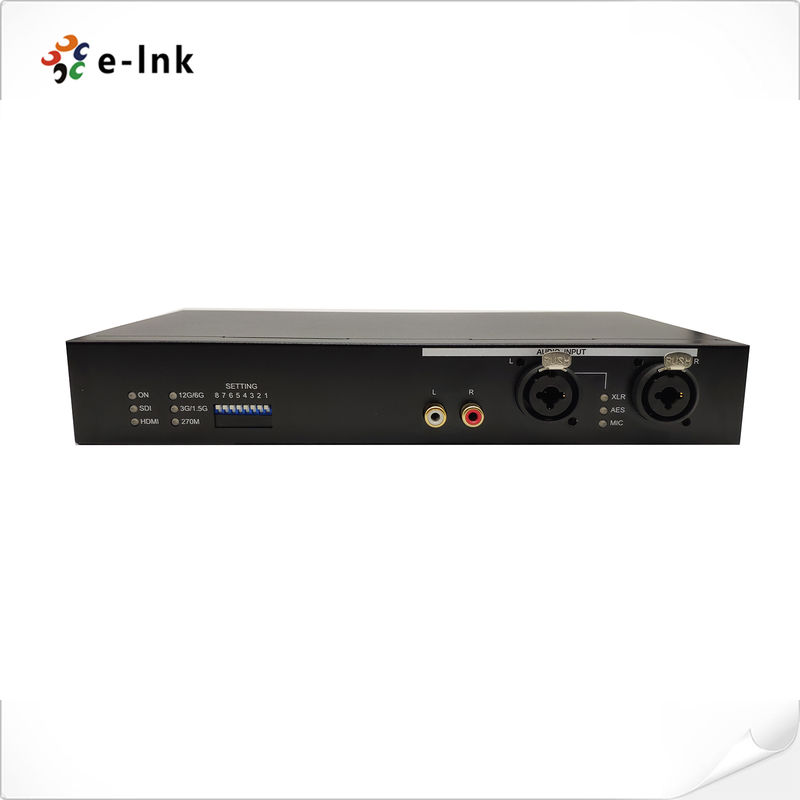

12G-SDI to HDMI 2.0 Converter

Name: 12G-SDI to HDMI 2.0 Converter
Brand: E-link China Technology Co.,LTD
SKU: Lnk-csh-12G
Price: 594.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: ROHS,FCC,CE

Modelnummer: Lnk-csh-12G

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: Onderhandelbaar

Verpakking Details: Converter standaard exportpakket

Levertijd: 3-12 Werkdagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram, Paypal

Levering vermogen: 1000 stuks/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                  SDI HDMI 2.0 Converter, 12G-SDI HDMI 2.0 Converter


Sleutelwoorden:	HDMI-Convertor	Bedrijfstemperatuur:	0 aan 55℃
Afmetingen (W x D x H):	253 x 162,5 x 40mm	Vervoergewicht:	1030g
Vochtigheid:	Onder 95°C

Sleutelwoorden:	HDMI-Convertor
Bedrijfstemperatuur:	0 aan 55℃
Afmetingen (W x D x H):	253 x 162,5 x 40mm
Vervoergewicht:	1030g
Vochtigheid:	Onder 95°C

Beschrijving

12G-SDI to HDMI 2.0 Converter

12G-SDI to HDMI 2.0 Converter Advantages

► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p

► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output

► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ

► Support audio embedding and de-embedding, compatible with AES/RCA audio

► SDI supports 8 Channels for embedded audio

► Support HDMI HDCP ON and OFF

► Fiber SFP port available, support 12G remote transmission

► Support phantom power

12G-SDI to HDMI 2.0 Converter Overview

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.

12G-SDI to HDMI 2.0 Converter Technical Indexes

Input Interface	1 x 75Ω BNC, 1 x Video SMPTE SFP+
Output Interface	1 x HDMI Type A, 1 x 75Ω BNC, 1 x Video SMPTE SFP+
Audio Interface	2 x XLR Male Jack
	2 x XLR Female Combo 6.4 Jack
	2 x 10KΩ RCA
Transmission Distance	Fiber SFP	10KM
	12G-SDI	40M
	3G-SDI	100M
	HD-SDI	200M

12G-SDI to HDMI 2.0 Converter Ordering Information

Model	Description
LNK-CSH-12G	12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules)

12G-SDI to HDMI 2.0 Converter 0
