Mini USB 3.0 Network Adapter
, USB 3.0 Gigabit Ethernet Network Adapter
, Gigabit Ethernet NIC Network Adapter

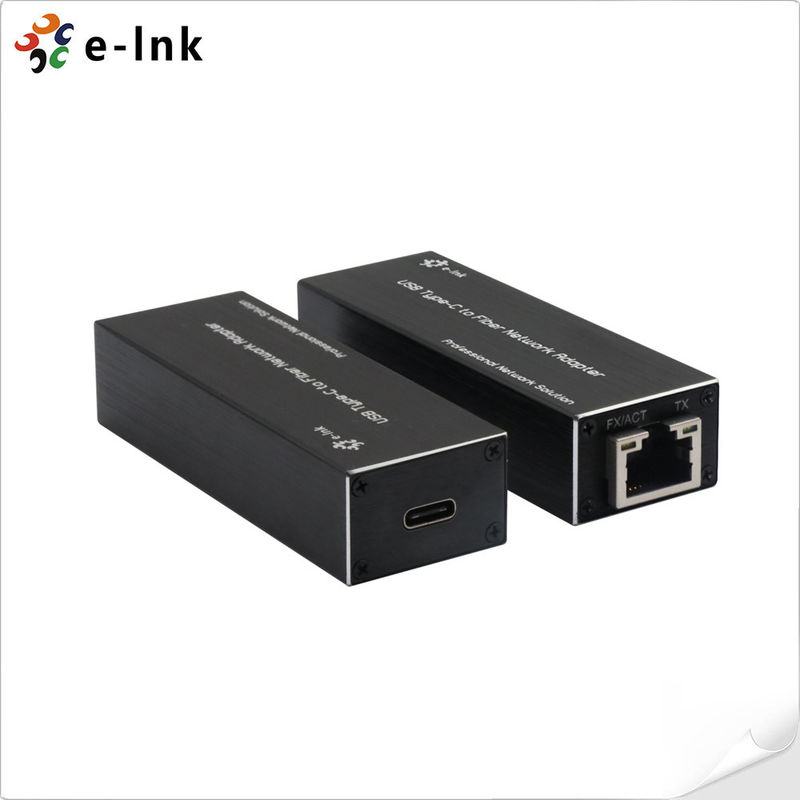

Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter
Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter
Model: E-link LNK-TCU1000
Overview
E-link LNK-TCU1000 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with
Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN
Card, Network Connection is more stable and quicker than Wifi access. It can offer 1000Mbps Internet
access, It provides up to 2000Mbps full-duplex bandwidth capacity. In addition, with advanced functions
like VLAN filtering packet processing, the adapter provides added performance, flexible configuration
and secure networking for users in a standard-based environment.
Features
► 1 x 10/100/1000Mbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot
► Supports Gigabit networking over USB 3.0
► IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
► Powered directly from the USB ports
► Crossover Detection & Auto-Correction (Auto MDIX)
► IEEE 802.1Q VLAN Tagging support
► Jumbo Frame support
► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
► Activity and Link LED indicators
► Compact, lightweight design for maximum portability
Technical Indexes
| Specifications |
| Standards: |
IEEE 802.3 10BASE-T |
| IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.1q VLAN tagging |
| Chipset ID: |
Realtek RTL8153B |
| Network Transfer Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Jumbo Frame Support: |
9K max. |
| Other: |
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload |
| Software |
| OS Compatibility: |
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019
MacOS 10.8 to 10.15, VLAN tagging is currently not supported in macOS
Linux Kernel up to 5.17
UEFI UNDI
|
| Interface |
| USB: |
1 x USB-C 3.0 |
| RJ45: |
1 x RJ-45 10/100/1000Mbps LAN port |
| Electrical and Mechanical |
| Power: |
USB Bus Powered |
| Power Consumption: |
5W Max. |
| LED Indicators: |
| L/A: |
Link/Activity |
| Dimensions (LxWxH): |
78 x 27 x 18 mm |
| Weight: |
46g |
| Casing: |
Aluminum Case |
| Mounting Options: |
Desktop |
| Environmental |
| Operating Temperature: |
0°C ~ 60°C (32° ~ 140°F) |
| Storage Temperature: |
-10° ~ 70°C (14° ~ 158°F) |
| Relative Humidity: |
5% to 90% non-condensing |
| MTBF |
> 100,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
Application
Ordering Information
| Model |
Description |
| LNK-TCU1000 |
Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter |
| Mounting Options |
► Desktop |
| Power Options |
► No need for an external power adapter (bus powered) |
| Package Contents |
► USB 3.0 Gigabit Ethernet Adapter x 1 |
| ► Quick installation guide x 1 |
