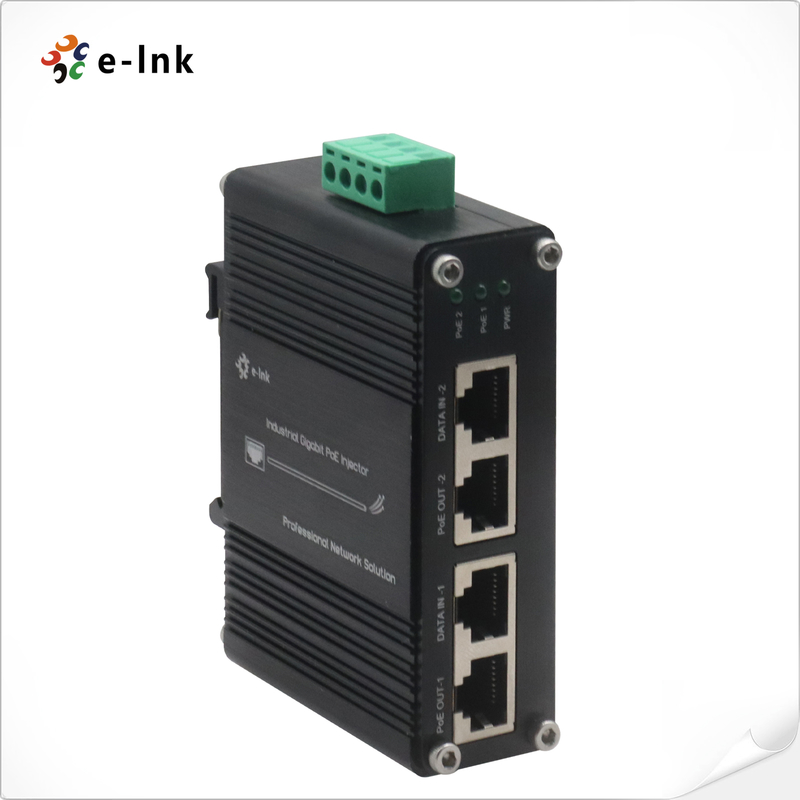

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

Model:LNK-INJ302

Overview

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows

you to connect the IEEE 802.3 af/at PoE device such as camera and access point with

a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000

Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE

802.3 at.

LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC

for high availability applications.

Features

► 12~48VDC Power Input

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Max 60W PoE at one port, total POE power less than 60W

► Extensive LED indicators for PoE diagnostics

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

►2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Application

• IP Cameras: Provides PoE power and data transmission for surveillance systems.
• Access Points: Supplies power to wireless access points in non-PoE networks.
• VoIP Phones: Ideal for powering IP phones in office environments.
• Remote Devices: Perfect for remote PoE devices in industrial and commercial settings.

Order Information
