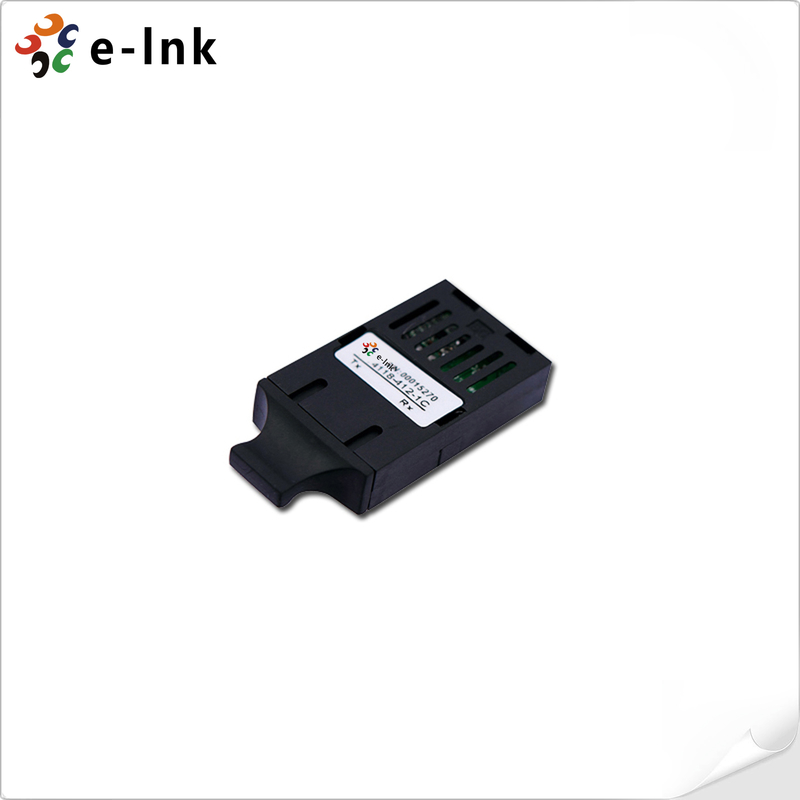

155M Single Fiber BIDI 1x9 Optical Transceiver

Name: 155M Single Fiber BIDI 1x9 Optical Transceiver
Brand: E-link China Technology Co.,LTD
SKU: Lnk-bd9-155T3R5
Price: 395.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: CE, FCC, RoHS

Modelnummer: Lnk-bd9-155T3R5

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: Negotiated

Verpakking Details: Standaard exportverpakking

Levertijd: 3-12 werkdagen

Betalingscondities: T / T, Paypal

Levering vermogen: 1000 stuks per mond

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Temperatuur:	0°C tot 70°C	Garantie:	3 jaar
Machtverlies:	<1,5 W	Gewicht:	0.025kg
Product Type:	SFP-vezeltransceivers

Temperatuur:	0°C tot 70°C
Garantie:	3 jaar
Machtverlies:	<1,5 W
Gewicht:	0.025kg
Product Type:	SFP-vezeltransceivers

Beschrijving

155M Single Fiber BIDI 1x9 Optical Transceiver

Advantage

► 20Km transmission with SMF

► +3.3V single power supply

► LVPECL compatible data input/output interface

► Low EMI and excellent ESD protection

► laser safety standard IEC-60825 compliant

► Compatible with RoHS

► Operating case temperature
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C

Overview

The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser.

the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

Application

· Ethernet

· Telecom

Ordering Information

Part Number	Product Description
LNK-BD9-155T3R5	155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, SC,20km, 0°C~+70°C
LNK-BD9-155T3R5L	155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, SC,20km, -40 to +85°C
LNK-BD9-155T5R3	155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, SC,20km, 0°C~+70°C
LNK-BD9-155T5R3L	155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, SC,20km, -40 to +85°C
