Mini Industrial SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W

Name: Mini Industrial SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC1200P60-serie
Price: 72.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: ISO9001

Modelnummer: LNK-IMC1200P60-serie

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 eenheid

Prijs: US$65-80/pc

Verpakking Details: Vezelmedia Convertor Standaardpakket

Levertijd: 5-10 werkdagen

Betalingscondities: T/T, Western Union, MoneyGram, Paypal

Levering vermogen: 10000 STUKS/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Feature:	De Energie Efficiënte Ethernet van IEEE 802.3az (EEE)	Poe.:	IEEE802.3at Macht over Ethernet
Voortstuwingsfilterpercentage:	148,800pps (100Mbps)	Vezelhaven:	1 x-Sc 100Base-FX
Stroominvoer:	48~57VDC, 2 speld eindblok	Vermogen:	48 Vdc

Feature:	De Energie Efficiënte Ethernet van IEEE 802.3az (EEE)
Poe.:	IEEE802.3at Macht over Ethernet
Voortstuwingsfilterpercentage:	148,800pps (100Mbps)
Vezelhaven:	1 x-Sc 100Base-FX
Stroominvoer:	48~57VDC, 2 speld eindblok
Vermogen:	48 Vdc

Beschrijving

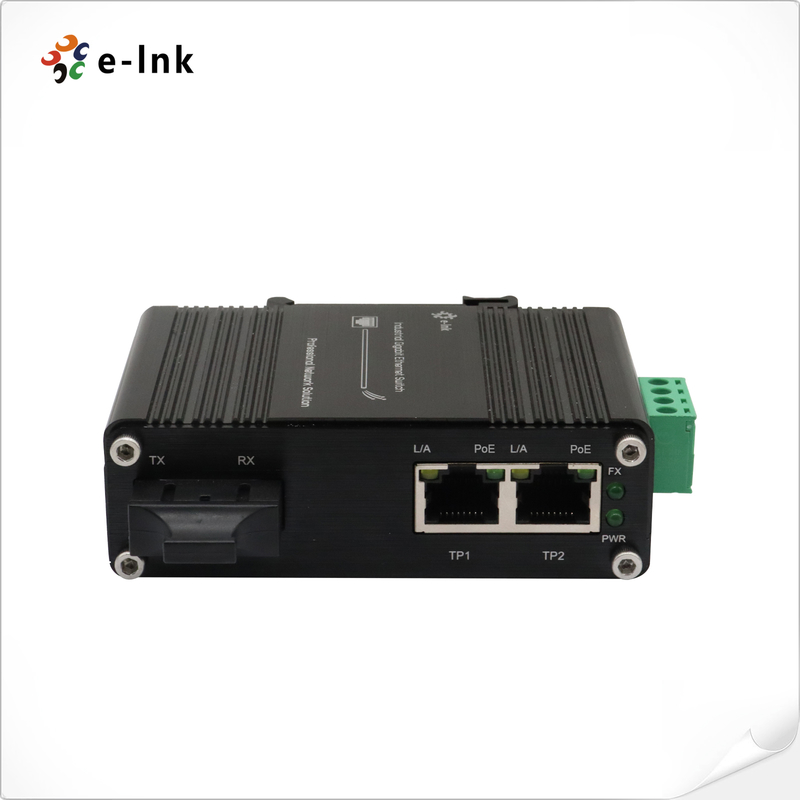

Mini Industrial SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W

60W POE Fiber Media Converter Industrial 1x100M SC + 2x10/100M Ethernet RJ45

Fiber Media Converter Advantages

2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
1-Port 100Base-FX SC
48~57VDC Terminal Block Power Input

Specifications

Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	48~57VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	125W Max.
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W 0

Order Information

Model	Description
LNK-IMC1200P60	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200P60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
