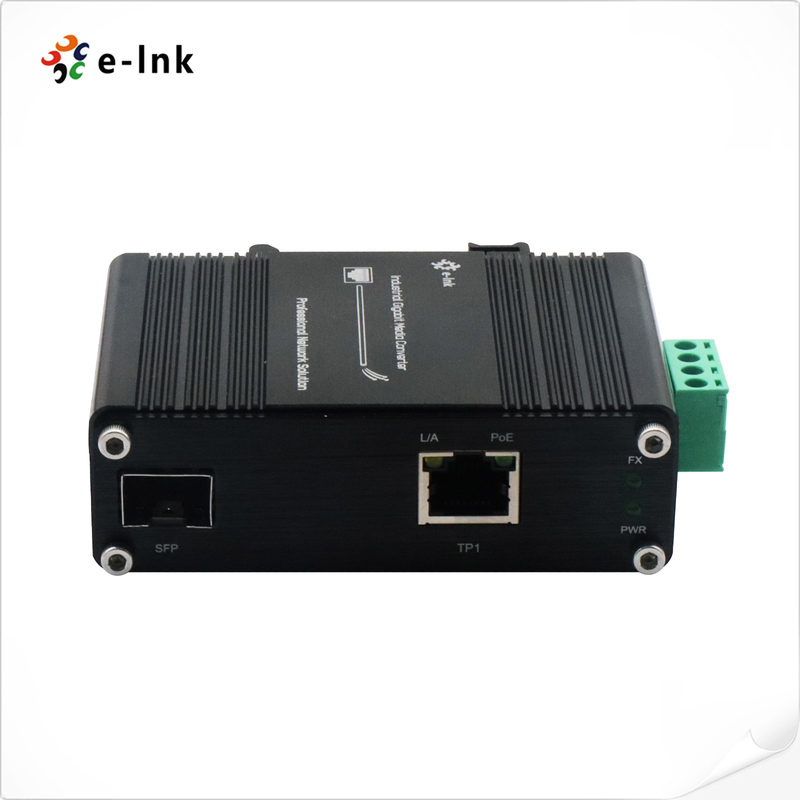

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W

Name: OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC3012P90-SFP-serie
Price: 82.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: ISO

Modelnummer: LNK-IMC3012P90-SFP-serie

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 eenheid

Prijs: US$75-90/pc

Verpakking Details: Vezelmedia Convertor Standaardpakket

Levertijd: 5-10 werkdagen

Betalingscondities: T/T, Western Union, MoneyGram, Paypal

Levering vermogen: 10000 STUKS/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Normen:	IEEE802.3bt Macht over Ethernet	Ingangsvermogen:	48~57VDC, 4 speld eindblok
Stroomverbruik:	95W max.	Afmetingen (WxDxH):	95 x 70 x 30 mm
Gewicht:	0.25kg	Montageopties:	DIN-Rail / wandmontage

Normen:	IEEE802.3bt Macht over Ethernet
Ingangsvermogen:	48~57VDC, 4 speld eindblok
Stroomverbruik:	95W max.
Afmetingen (WxDxH):	95 x 70 x 30 mm
Gewicht:	0.25kg
Montageopties:	DIN-Rail / wandmontage

Beschrijving

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W

Fiber Media Converter Advantages

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
Supports Full/Half-duplex, Auto-negotiation
48~57VDC Terminal Block Power Input

Specifications

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Power Consumption:	95W Max.
LED Indicators:
PWR:	Power Status
PoE:	PD Plug Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W 0

Order Information

Model	Description
LNK-IMC3012P90-SFP	Hardened 10/100/1000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 90W PoE++
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
