Gigabit Passive Poe Injector and Splitter Kit

Name: Gigabit Passive Poe Injector and Splitter Kit
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE-2GP
Price: 42.90 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: CE, FCC, RoHS，ISO9001

Modelnummer: LNK-POE-2GP

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: Negotiated

Verpakking Details: Standaard exportverpakking

Levertijd: 3-15 werkdagen

Betalingscondities: T / T, Paypal

Levering vermogen: 1000 stuks per mond

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Inlaatspanning:	9 tot 48VDC +/- 5%, maximaal 56VDC	Ethernet-gegevenssnelheid:	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximumoutputstroom:	1A	Gelijkstroom-schakelaargrootte:	5.5 x 2,1 mm
Werktemperatuur::	0°C tot 45°C (-32°F tot 113°F)	Bewaar temperatuur::	-30°C tot 70°C (-22°F tot 158°F)

Inlaatspanning:	9 tot 48VDC +/- 5%, maximaal 56VDC
Ethernet-gegevenssnelheid:	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximumoutputstroom:	1A
Gelijkstroom-schakelaargrootte:	5.5 x 2,1 mm
Werktemperatuur::	0°C tot 45°C (-32°F tot 113°F)
Bewaar temperatuur::	-30°C tot 70°C (-22°F tot 158°F)

Beschrijving

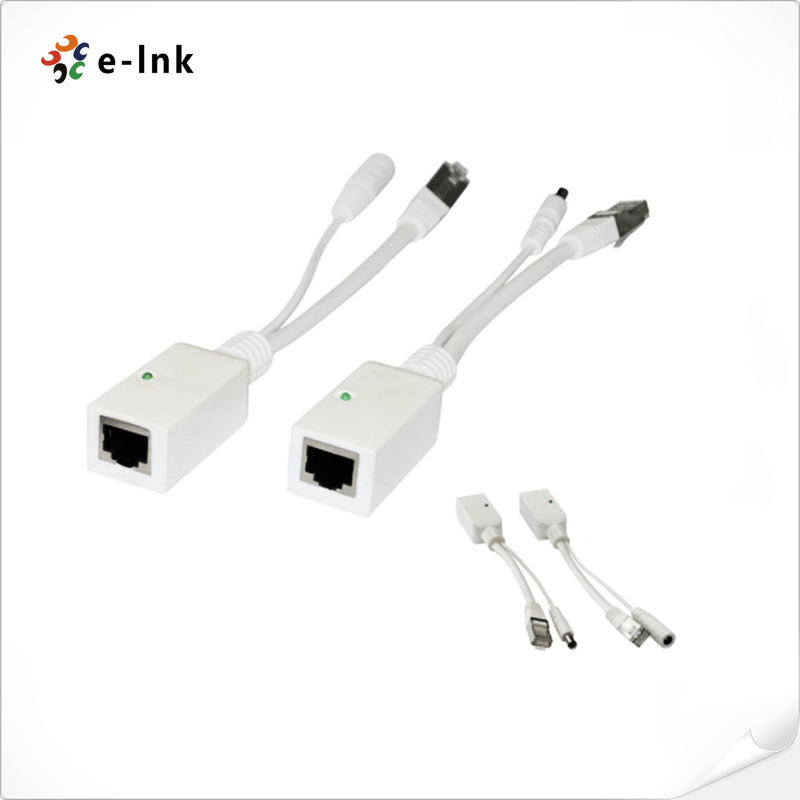

Gigabit Passive Poe Injector and Splitter Kit

Advantage

► Includes Passive Injector & Splitter Sides

► Works with all DC powered non-PoE devices

► Support10/100/1000M BASE-TX.

► Ethernet Cable Data rate: 10/100/1000Mbps.

► Input Voltage: 9V~ 48V.

► Easy to install PoE Application for AP, CPE, IP Camera, IP Phone

► Works up to 150 feet (depending on cable used and power draw of device)

Overview

This LNK-POE2GP passive power-over-Ethernet (PoE) gigabit splitter and injector device are

compliant with the IEEE 802.3af/at standard. It has 5.5 x 2.1 mm size DC connectors. It will

also provide superior operation for 10 Mbps 10BASE-T and 100 Mbps 100BASE-TX in addition

to the gigabit (1000 Mbps) 1000BASE-T operations. E-link engineers designed the internal wire

construction with solid copper, 24 AWG wire. It utilizes shielded connectors with an internal drain

wire. A green LED indicates presence of voltage.

Technical Indexes

Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Input Voltage	9 to 48VDC +/- 5%, Maximum 56VDC
Power Pin Assignment	• Data provide over pairs 1/2(+) and 3/6(-)
	• Power over spare pairs 4/5(+) and 7/8(-)
Ethernet Data Rate	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximum Output Current	1A
Over Current Protection	Yes
Ethernet Connectors	Shielded with Internal Drain Wire
Internal Wire Size	24 AWG Solid Copper
DC Connector Size	5.5 x 2.1 mm
LED	Green Indicating Voltage Present
Housing Material	ABS
Dimensions	Length = 8 inches (20.3 cm)
Weight:	96 grams (3.3 ounces)
Operating Temperature:	0°C to 45°C (-32°F to 113°F)
Storage Temperature:	-30°C to 70°C (-22°F to 158°F)
Relative Humidity:	5% to 90% non-condensing

Application

Gigabit Passive Poe Injector and Splitter Kit 0

Ordering Information

Model	Description
LNK-POE-2GP	Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors
