12LC Quad Din-rail Mount Fiber Patch Panel

Name: 12LC Quad Din-rail Mount Fiber Patch Panel
Brand: E-link China Technology Co.,LTD
SKU: LNK-FSB-D-12LC
Price: 369.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: ISO9001, CE, ROHS, FCC

Modelnummer: LNK-FSB-D-12LC

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: negotiate

Verpakking Details: Verpakking in standaard karton

Levertijd: 3-5 werkdagen

Betalingscondities: T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 1000/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Kabelinvoerpoort::	2 havenkabel	Installatie::	DIN RAIL montage
Hoesjes:	Al (aluminium)	LC-Quad:	Max. 12 stuks.
LCrainverlichting:	pg klier	Gewicht:	0.6kg

Kabelinvoerpoort::	2 havenkabel
Installatie::	DIN RAIL montage
Hoesjes:	Al (aluminium)
LC-Quad:	Max. 12 stuks.
LCrainverlichting:	pg klier
Gewicht:	0.6kg

Beschrijving

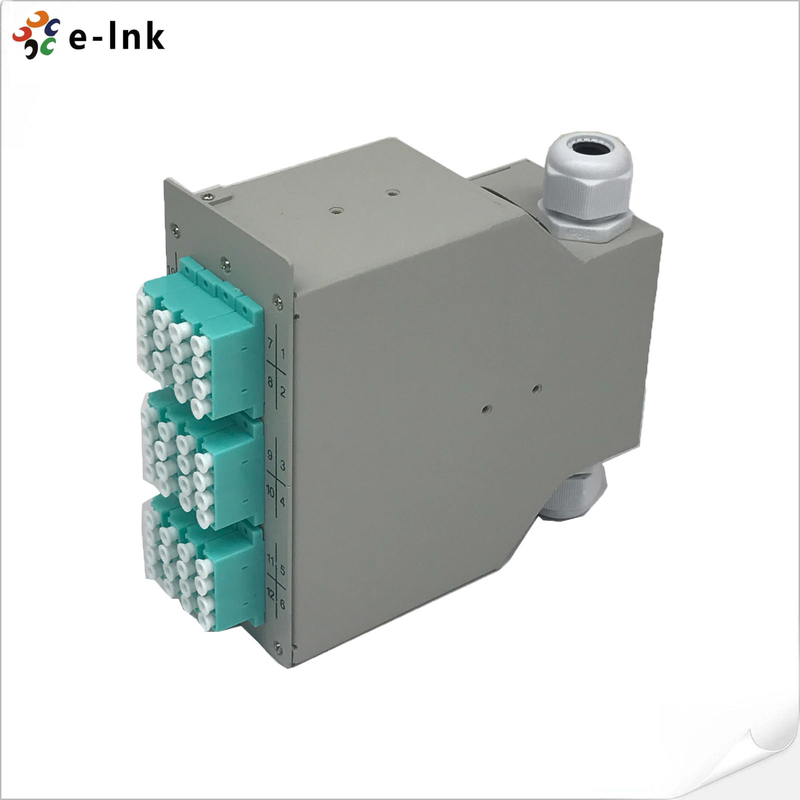

12LC Quad Din-rail Mount Fiber Patch Panel

Model :LNK-FSB-D-12LC

12LC Quad Din-rail Mount Fiber Patch Panel 0

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion

splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes

making it light weight and compact in size.

Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount

equipment. The patch panel can be loaded with 12 LC Quad adapters.

Features

► Up to 12 ports LC-Quad adapters

► Din-rail mounting

► Space-saving installation

► IP20 protection

► 2x rear entries (PG 11 cable gland)

► Grey color (RAL 7035)

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Other configurations on demand

Technical Indexes

General
Application	Harsh environment,
Design	Splice distributor
Color	Gray
Dimensions (LxWxH)	131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight	0.6KG
Mounting Options	DIN-Rail
Connections/Interfaces
Cable access/outlet	From top or bottom, straight or inclined
Equipped Adapters
LC-Quad	Max. 12pcs
Mechanical
LCrain relief	PG gland
Materials
Casing	Al (Aluminum)

Ordering Information

Model	Description
LNK-FSB-D-12LC	12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs LC/PC SM Quad adapters
