12ST Duplex Din-rail Mount Fiber Patch Panel

Name: 12ST Duplex Din-rail Mount Fiber Patch Panel
Brand: E-link China Technology Co.,LTD
SKU: LNK-FSB-D-12ST
Price: 369.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: E-link

Certificering: Iso9001, CE, ROHS, FCC

Modelnummer: LNK-FSB-D-12ST

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 stuks

Prijs: negotiate

Verpakking Details: Verpakking in standaard karton

Levertijd: 3-5 werkdagen

Betalingscondities: T/T, Western Union, MoneyGram, PayPal

Levering vermogen: 1000/maand

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:

Zuivel:	Duplex	Installatie::	DIN-spoor steun
Montageopties:	Din-rail	ST-Duplex:	Max. 12 stuks.
Hoesjes:	Al (aluminium)	Gewicht:	0.6kg

Zuivel:	Duplex
Installatie::	DIN-spoor steun
Montageopties:	Din-rail
ST-Duplex:	Max. 12 stuks.
Hoesjes:	Al (aluminium)
Gewicht:	0.6kg

Beschrijving

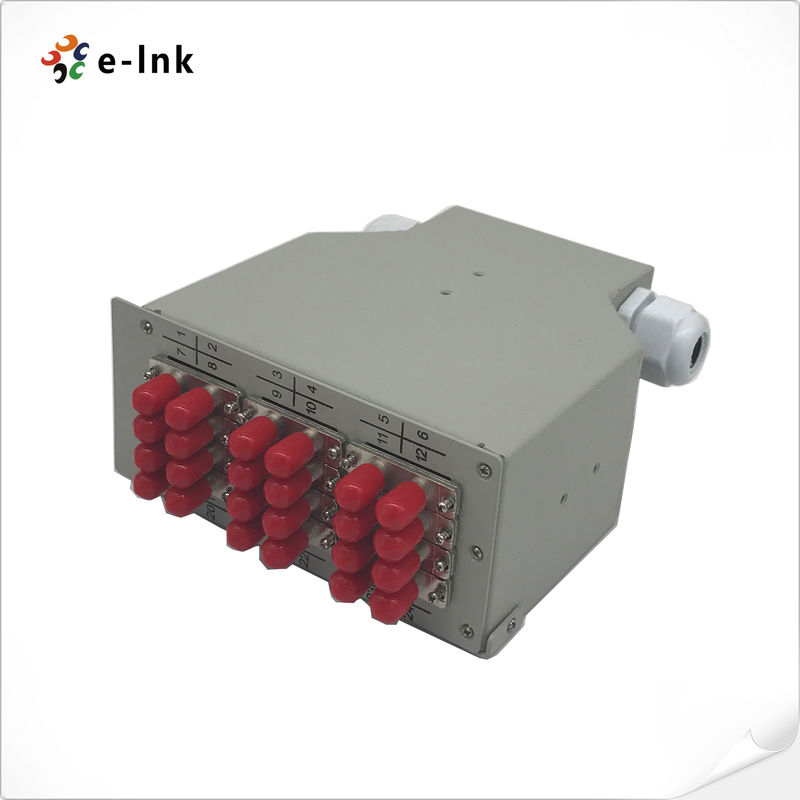

12ST Duplex Din-rail Mount Fiber Patch Panel

Model : LNK-FSB-D-12ST

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination

or fusion splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum

with natural finishes making it light weight and compact in size. Features designed to save space especially

when mounted within enclosures or cabinet with other din rail mount equipment. The patch panel can be

loaded with 12 ST duplex adapters.

Features

► Up to 12 ports ST-Duplex adapters

► Din-rail mounting

► Space-saving installation

► IP20 protection

► 2x rear entries (PG 11 cable gland)

► Grey color (RAL 7035)

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Other configurations on demand

Material

Al (Aluminum)

Technical Indexes

General
Application	Harsh environment
Design	Splice distributor
Color	Gray
Dimensions (LxWxH)	131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight	0.6KG
Mounting Options	DIN-Rail
Connections/Interfaces
Cable access/outlet	From top or bottom, straight or inclined
Equipped Adapters
ST-Duplex	Max. 12pcs
Mechanical
Strain relief	PG gland
Materials
Casing	Al (Aluminum)

Ordering information

Model	Description
LNK-FSB-D-12ST	12ST Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs ST/PC SM Duplex adapters
